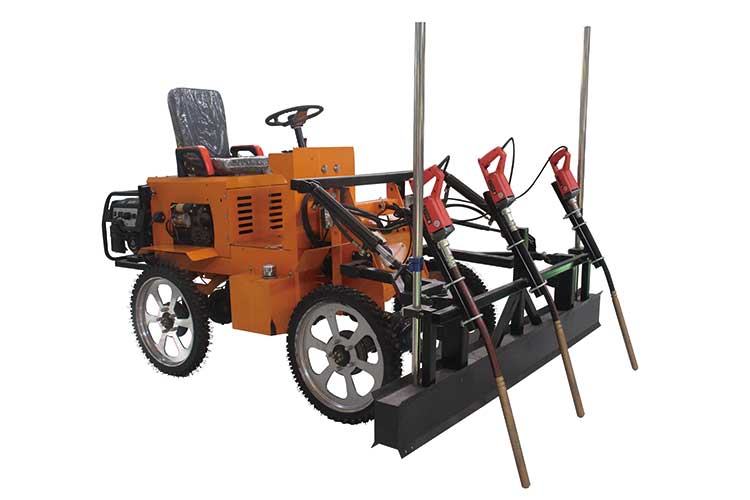

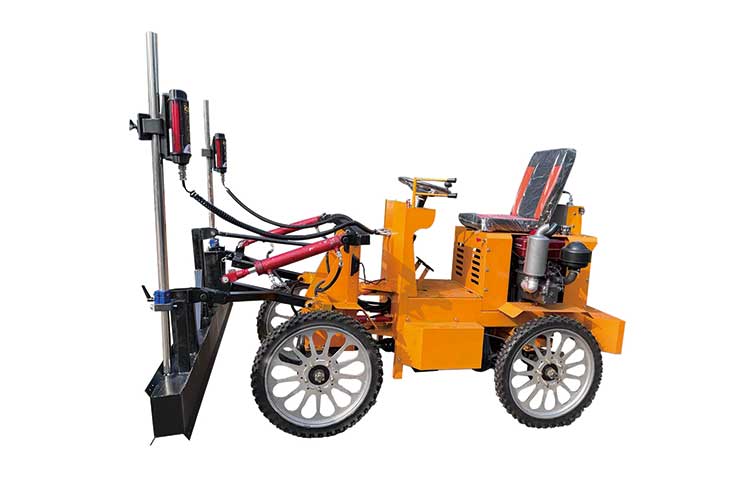

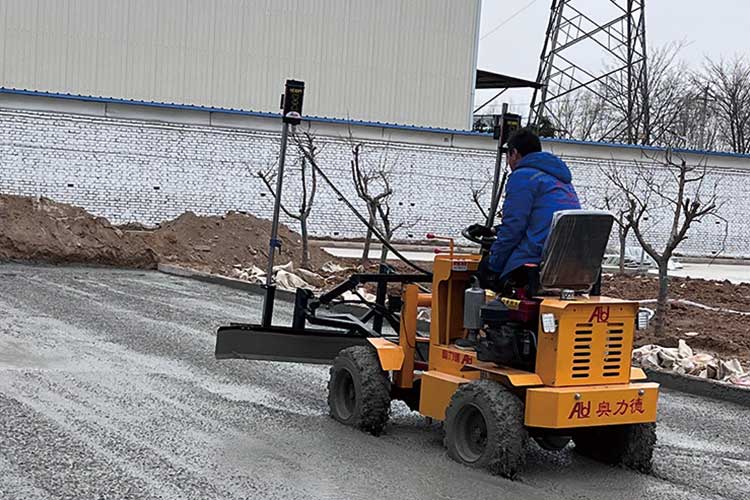

        Concrete scraper

        Paving width: 2 meters
        Paving thickness: 3-30 cm

        contact

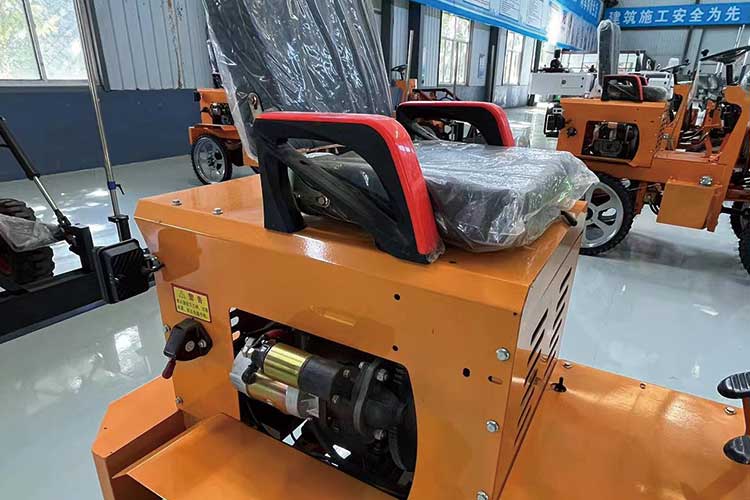

        1. The machine is equipped with an 18 horsepower diesel water-cooled engine, which is powerful in ash removal.

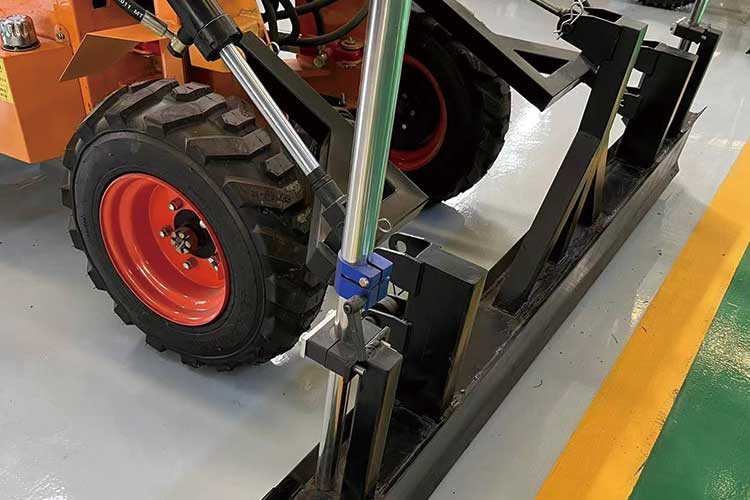

        2. Laser positioning automatic leveling, with small paving error.
        3. The machine paving is completed in one go, and manual dust removal is no longer required.
        4. The machine is set in four gears, with fast paving speed and high efficiency.
        5. The machine is driven by hydraulic pressure, ensuring stable and accurate construction.

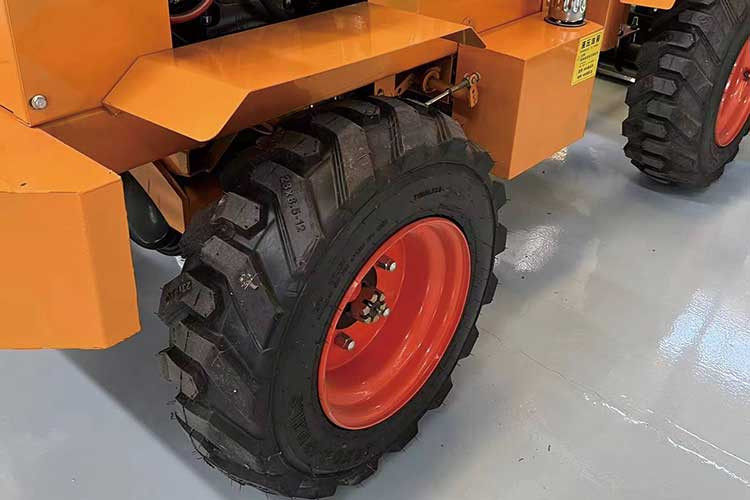

        6. The machine has wide and narrow tires to meet all construction needs.
        Parameters of concrete scraper
        Engine model Diesel water-cooled engine 18 horsepower
        fuel Conventional light diesel, winter-10#
        Hydraulic oil Winter 68 # Summer 46 # Hydraulic Oil
        Paving width 2m
        Paving thickness 3-30cm
        Maximum ash removal amount 10cm
        Leveling effect Flat, sloping
        By height Wide tire 280mm/narrow tire 350mm
        Drive Wheeled four-wheel drive
        paving speed >=15m/min
        Applicable concrete slump >=140 or above
        Maximum driving speed 7.5km
        voltage 12V
        Hydraulic flow rate 50L
        Number of gears Forward 3rd gear/Reverse 1st gear
        Leveling principle Laser positioning
        seat height 1160mm
        wheelbase 1300mm
        Requirements for steel mesh Steel bars above 10 #
        Length X width X height mm 2800*2500*1600
        weight 750kg
